Price on Application
• Exchangeable LED heads with integrated operating hours monitoring.
• Intelligent LED heads with integrated magnetic coupling for electromagnetic remote unlocking.
• Plug and Play: Automatic recognition of the LED head used.
• Also available to hire – call 01226 397015 to enquire.

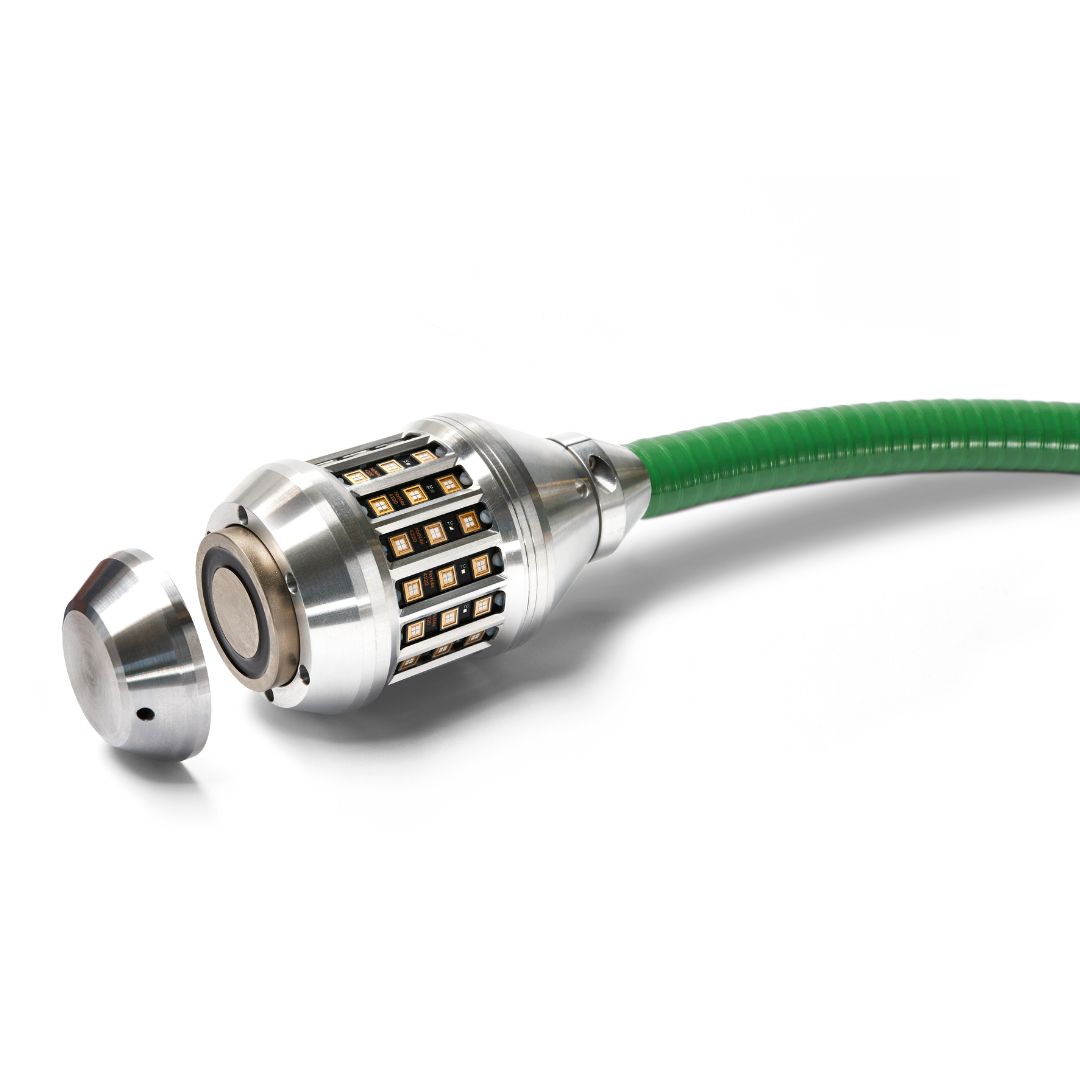

Thanks to the 192 high-power UV LEDs and the associated greater light output, up to approx. 70% faster curing is possible compared to the Nano LED head. The Mega LED head is suitable for rehabilitating the dimension ranges DN 125 to DN 300. From a pipe diameter of DN 150 upwards, pipes with bends can also be rehabilitated economically and efficiently.
| High-performance UV LEDs | 192 |
| Head diameter | 80 mm |
| Weight (head) | 1000 g |
| Magnet holding power | approx. 100 kg |
| Wattage | 500 W |
| Light output | approx. 255 W |
| Wavelength | approx. 395 nm |
| Sensors | 2x temperature |
| Memory | 1x EEPROM |
| Curing | possible from DN 125 upwards (straight pipe run/slight bends) |
