K-Prema Internal Seal System

• Uncomplicated mechanical install – taking as little as 30 minutes.
• No excavation is required, reducing environmental disruption.
• Cost effective and can be used on a variety of pipes.
• No chemicals are used, so no curing time.
• Provides a durable and watertight seal.

Description

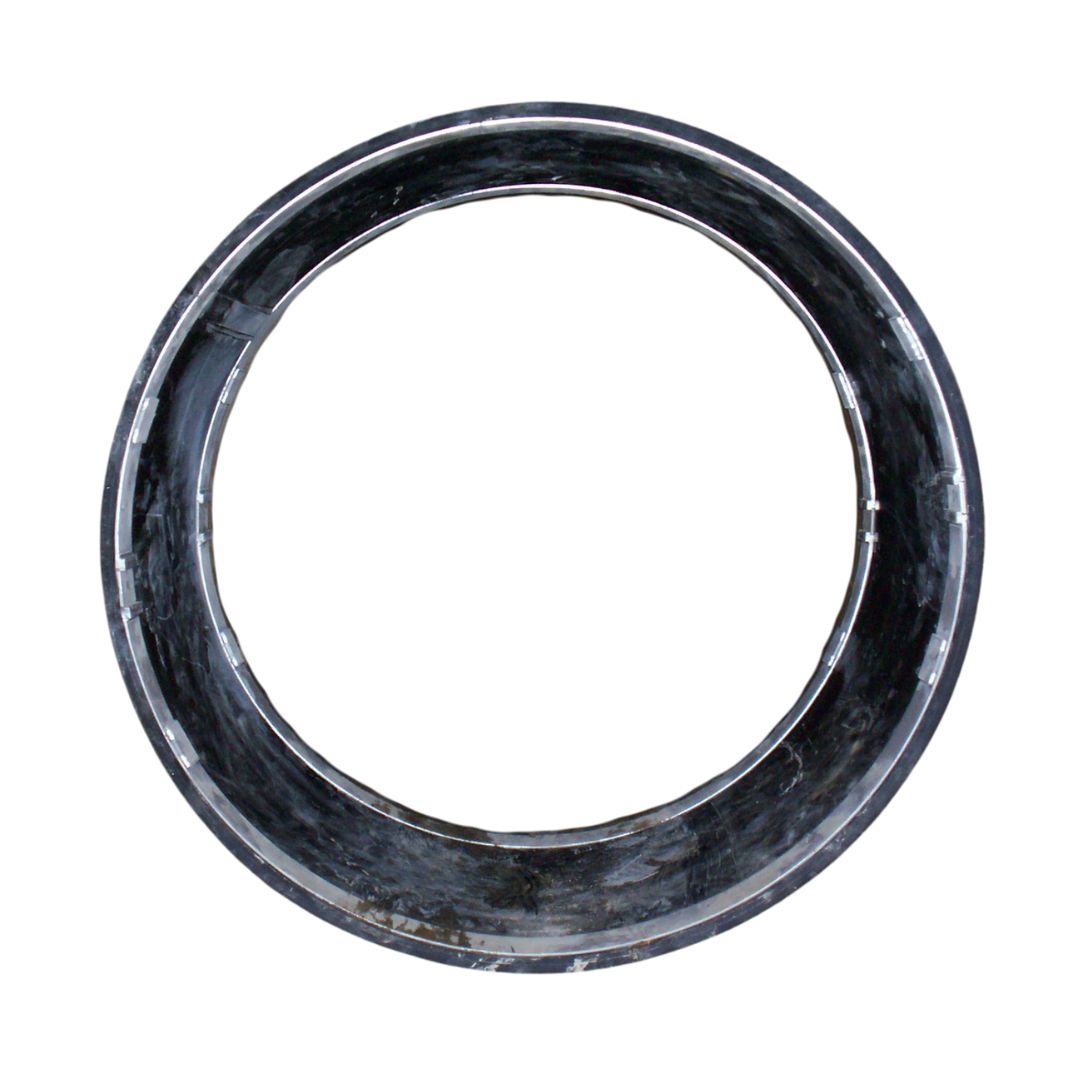

The K-Prema Internal Pipe Seal System consisting of a large EPDM rubber sleeve and retaining clamping bands. Designed for the rehabilitation and repair of localised damage within man-entry pipelines, it has been manufactured to suit a range of sewage water, oil and air applications, the K-Prema range can be utilised on an array of pipe materials including concrete, steel, cast iron, PE, glass fibre and other materials. Liner end seals are also part of the K-Prema range.

Available for pipelines from 500mm to 4000mm, K-Prema is manufactured from a WRAS-approved material and will withstand an internal pressure of 20 bar.

High-quality manufacturing and durable under pressure.

The system consists of an EPDM rubber sleeve and clamping bands made of high grade 304 stainless steel. K-Prema has a maximum internal pressure rating of 20 bar (290psi) and an external pressure range of between 0.5-1 bar. Additional clamp bands can be installed across the width of the coupling to resist higher external pressures.

The system is easy to use, with a simple installation process, the tools required are a special hydraulic ram and hand pump (These can be purchased or hired from S1E. Call 01226 397015 or email contact@s1e.co.uk.)

Provides a durable and watertight seal with high elasticity to maintain contact.

K-Prema is an efficient method of sealing pipes that are damaged due to corrosion, displaced joints, tree roots and ground movement.

Manufactured from a WRAS-Approved material.
Simple and fast assembly using an uncomplicated mechanical mounting technique, taking from as little as 30 minutes.
No excavation required, only one entrance to the pipeline is required.
Cost effective solution, and can be used to repair a variety of pipe materials including; concrete, steel, cast iron and plastics.
High maximum Internal pressure rating of 20 bar (290psi)
Possible dismantling and complete reusability – ecologically harmless.
Internal pipe seal range: 500mm to 4,000mm pipes.
Seal bands are available at 280mm, 330mm and 480mm widths, to suit various applications.

Full Name(Required)

Phone Number(Required)

Email Address(Required)

Company Name

Location / Post Code

K-Prema seals and compression bands are made to order to the sizes given. Please ensure that the internal diameter of the pipe is measured accurately. To do this measure from 12 o’clock to 6 o’clock, 9 o’clock to 3 o’clock and 10 o’clock to 4 o’clock.

Take the average of these three measurements as being the internal diameter.

Internal diameter of the pipe (mm)(Required)

Pipe Material(Required)

Medium (water, wastewater, gas etc.)(Required)

Width of joint/split(Required)

Other damaged areas(Required)

Dia of access point (mm)(Required)

Internal Pressure (bar)(Required)

External Pressure (bar)(Required)

Width of K-Prema required(Required)

Quantity required(Required)

The K-Prema seals come with 2 x stainless steel compression bands as standard. Additional compression bands may be required to counteract the effects of external pressure acting against the rubber seal. Packing and Shipping charges are also chargeable, a quote for which will be provided upon confirmation of order. For more information and advice, please contact the S1E sales team.
