Description
Compact push rod camera inspection systems for domestic drainage pipelines. Easy-to-handle camera systems with customisable options, using high-quality German-engineered components.

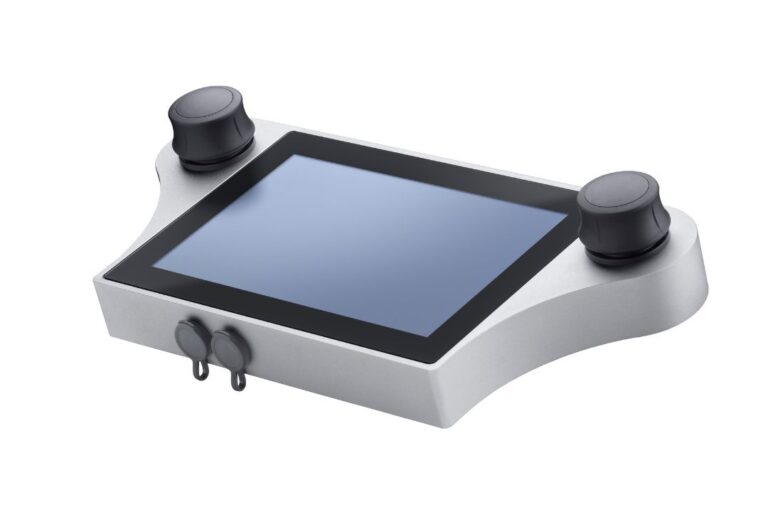

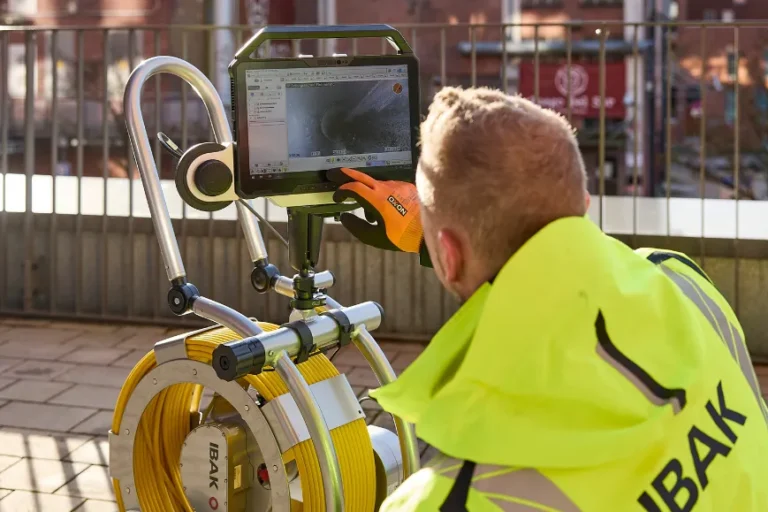

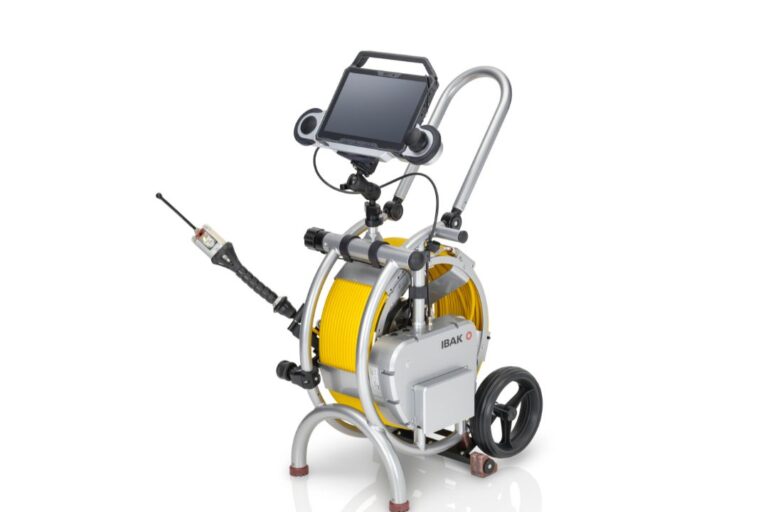

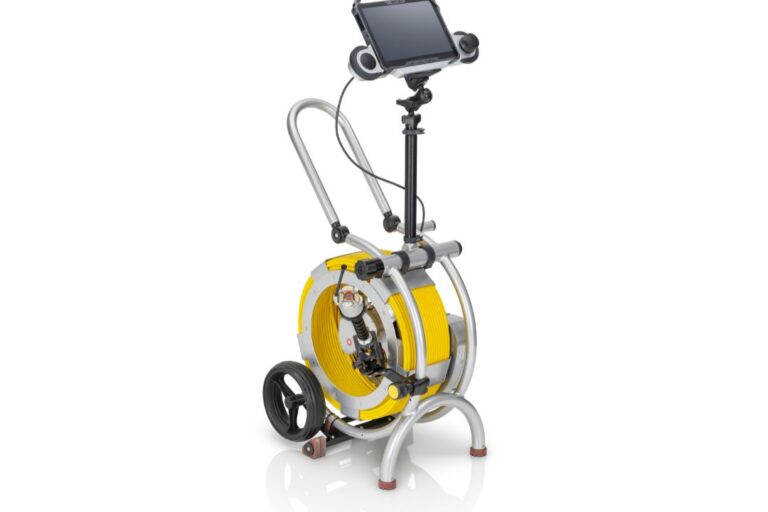

MiniLite Sliding Camera System can examine domestic lines from DN80 and larger. The IBAK MiniLite was designed to cover as wide a range of applications as possible, thanks to its flexibility with lots of specification options. It is suitable for pipes from DN80 upwards, although it can be used for pipes as small as DN50 if it is specified with the 30m Magic Push Rod drum. It is compatible with either the BP2 or BP100 10″ touch display control panels.
The MiniLite can be used to create 3D site plans if used in conjunction with 3D-GeoSense. Please ask for more information.
Dimensions: 400 (w) x 780 (h) x 720 (d) mm (exc control panel)
Weight: 29.5 Kg (approx)
Options:

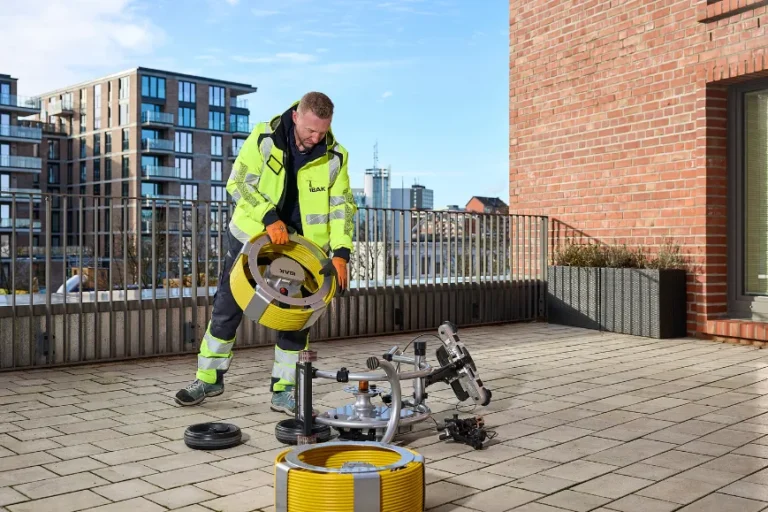

Push rod coils –

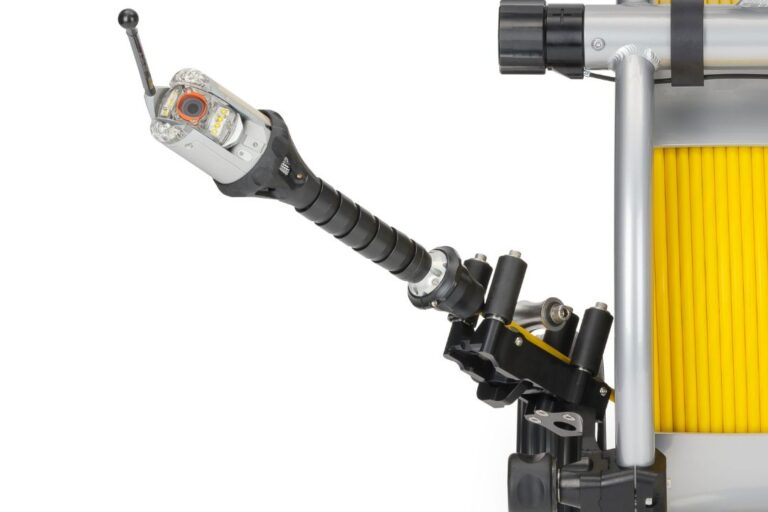

- 30m Magic Push Rod Exchange Drum with AxialCam (mounted or push-in) for DN50 pipes & upwards
- 40m Magic Push Rod Exchange Drum
- 80m Perfect Push Rod Exchange Drum
Cameras –
- AxialCam, NANO, NANO L, POLARIS, ORION, ORION L
