XS Spray Lining System

Description

Compact Spray Lining System for DN 50 to DN 150

We’ve teamed up with Relining Group to bring you the cutting-edge ElastoTec Spray Lining equipment—specially designed for use with ElastoFlake material! This next-generation machine ensures precision, efficiency, and top-tier spray lining results, taking your work to the next level.

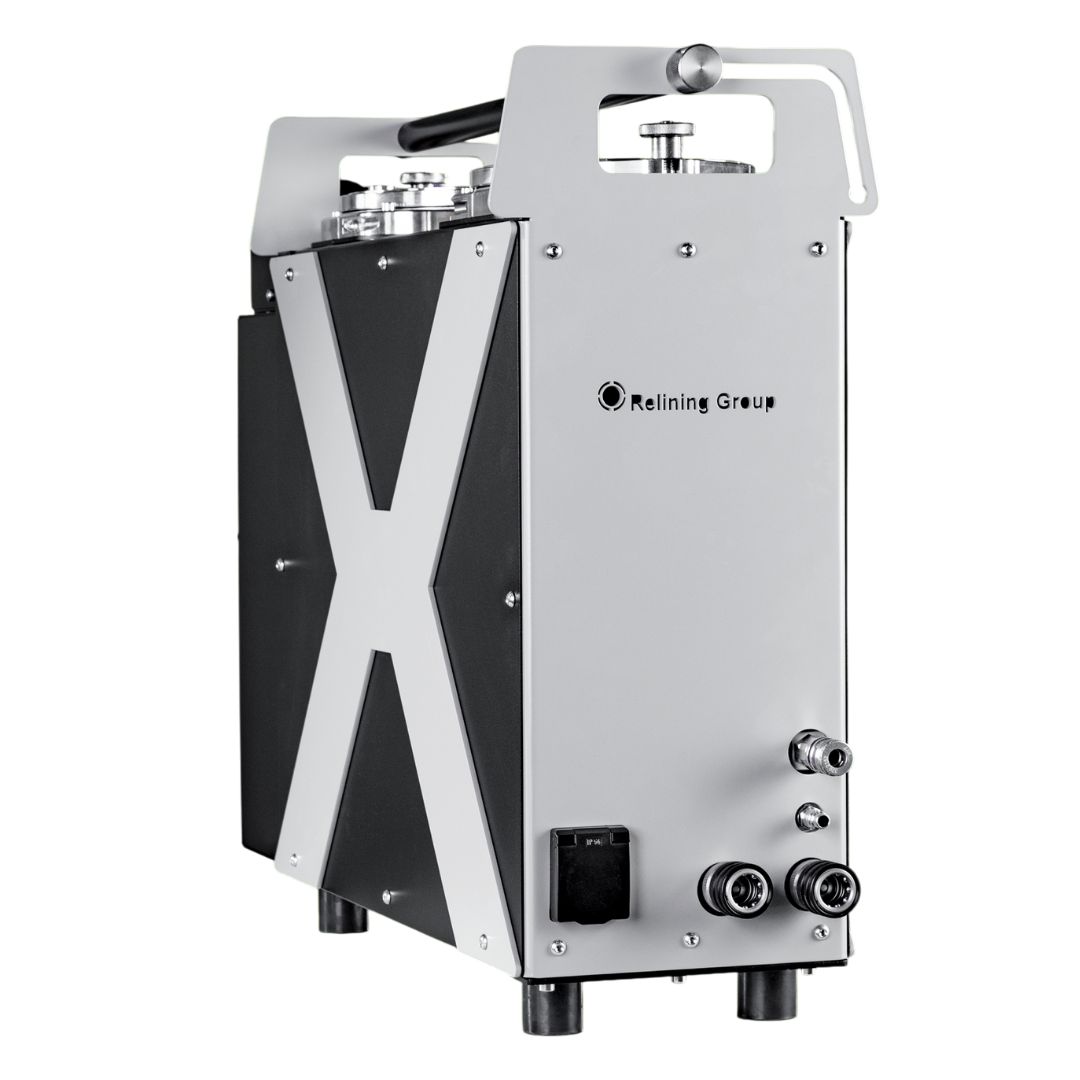

The XS Spray Lining Machine is a state-of-the-art spray-in-place pipe rehabilitation system, designed to apply ElastoFlake resin with precision and efficiency. Using airless spray technology, it delivers a uniform, high-quality coating that cures in minutes, significantly reducing project time. Its self-maintaining system minimises manual cleaning, while zero material waste ensures cost-effectiveness and environmental sustainability. DIBt approved and built for versatility, it enhances pipe durability, strength, and longevity.

Why choose SIPP

• Faster Curing – SIPP uses fast-curing resins that set in minutes, reducing downtime compared to CIPP’s longer curing process.
• No Liner Needed – SIPP is directly sprayed onto the pipe surface, making it ideal for irregular shapes and complex geometries.
• Minimal Diameter Reduction – SIPP preserves pipe capacity better than CIPP, which slightly reduces diameter.
• Less Equipment and Disruption – SIPP requires less equipment, making it suitable for confined spaces and reducing site disruption.
• Hard to Reach Areas – SIPP is perfect for those hard to access areas and smaller diameter pipes

While CIPP remains the preferred method for structural rehabilitation, SIPP is often the better choice for corrosion protection, leak prevention, and extending pipe lifespan without major disruptions.

What is included in the package:

·         XS Coater UK – x1

·         Dryer Packet – x1

·         Centring Device 9PCS – x1

·         Fantec Super S – x1

·         Air Spray Head – x3

·         Pressure Regulator – x1

·         Pneumatic Air Hose 33m – x1

·         Ankle Fitting – x4

·         10mm Securing Ring for Brush – x2

·         8mm Securing Ring for Brush – x1

·         Gorilla Grip – x1

·         Bearing – x10

·         Static Mixer – x30

·         Brush 75mm, 8mm Cable Shaft – x10

·         Brush 110mm, 10mm Cable Shaft – x10

·         Brush 130mm, 10mm Cable Shaft – x10

·         Brush 160mm, 10.5mm Cable Shaft – x10

·         Basic Connector 6-1/4 – x2

·         Basic Connector 10-1/4 – x2

·         Y Connector – x20

·         PA Tube 6/4 – x25

·         Electric Tape – x1

·         Cleaning Bucket with Lid – x1

·         Tool Box – x1

·         Instrument Box – x1

·         Pressure Cleaning Pump – x1

·         110v Air Compressor – x1

·         Picks for cleaning connectors 1mm x 5 & 2mm – x5
